It’s time for another update. You’ll notice a few more colors in these images. I’ve “colored” a few of the areas to make them easier to distinguish from the other areas. By no means are these colors/textures/materials final. 🙂
One thing to note about this update, the monorail station is “roughed out” and I haven’t added a great deal of well, details to the model yet. While I was modeling the exit of the station I realized I didn’t have a lot of reference material. So rather than commit a lot of detail to something that is wrong, I thought I’d post what I have so far and see if anyone can confirm/deny the accuracy of the model.
Without further ado, here’s what I have so far:

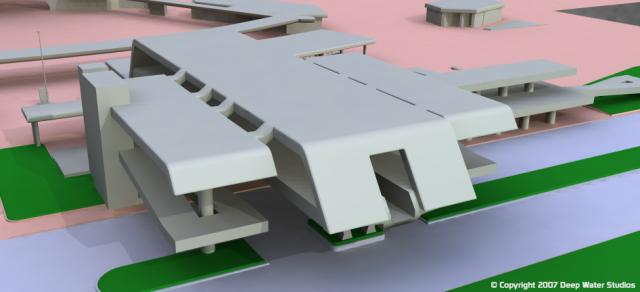

EPCOT Center Monorail Station test render 01
You’ll notice a lack of glass between the ceiling “arms” that join the entrance, main and exit roofs. I’ll add those later. (Anyone have a picture of those?) You’ll also notice there aren’t any rails on the paths either. That’s one of the details I’ve left out until I’m sure the overall model is correct.

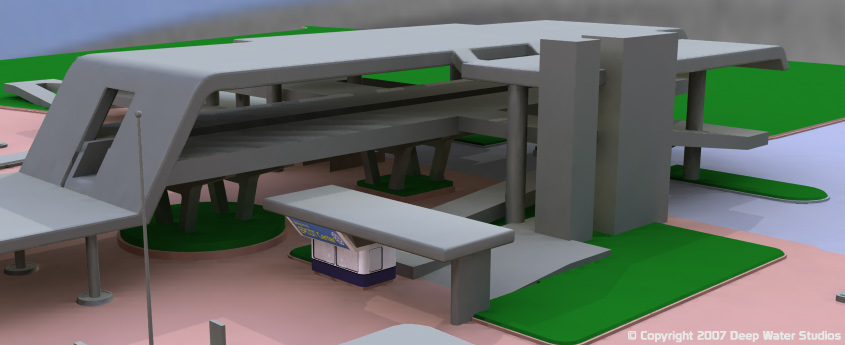

EPCOT Center Monorail Station test render 02
Here we can see the elevators. Anyone have a picture of the elevators? I forgot to get a pic of them last time I was down there.

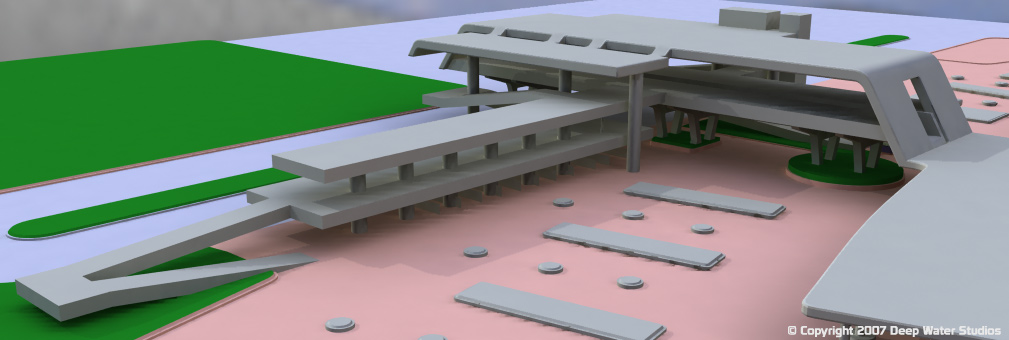

EPCOT Center Monorail Station test render 03

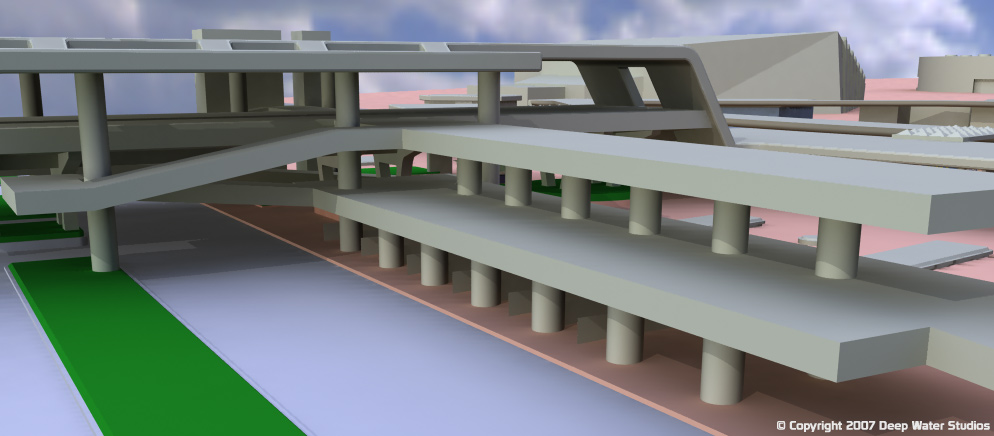

EPCOT Center Monorail Station test render 04
This is the area where I’m a little unsure.

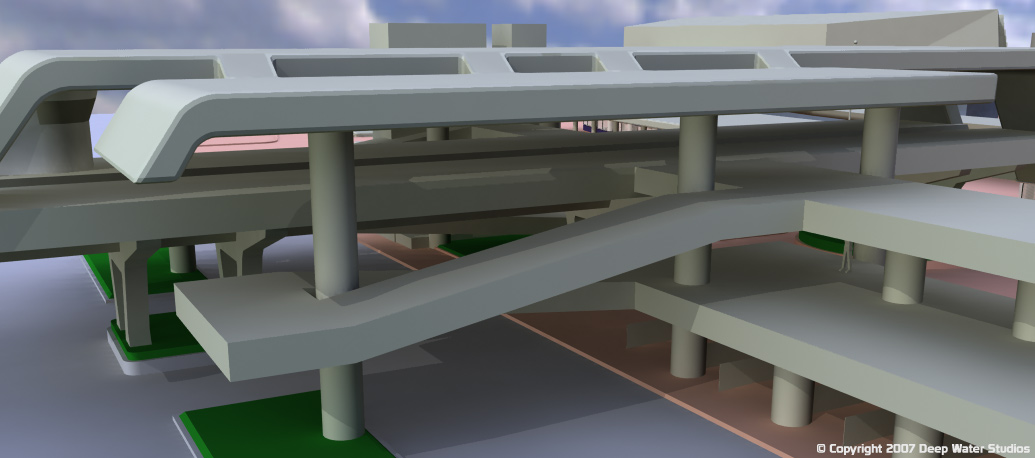

EPCOT Center Monorail Station test render 05

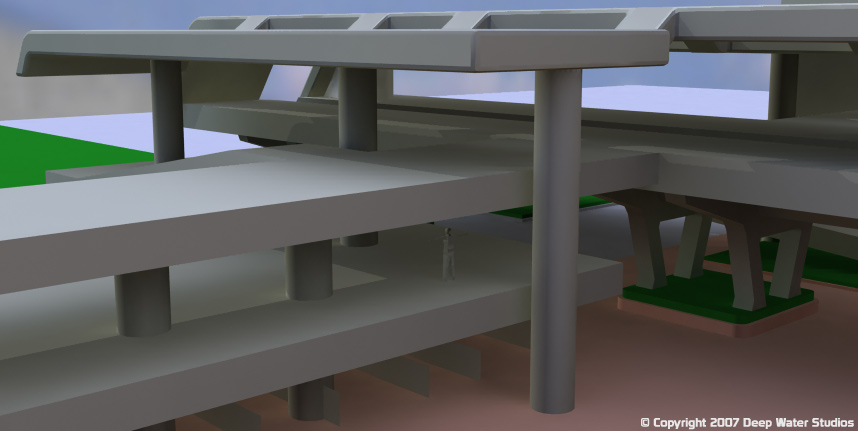

EPCOT Center Monorail Station test render 06
The division between the walkway and the roof will be more apparent when I add the walkway rails and more detail to the exit paths. My question is, do I have the width of the path correct?

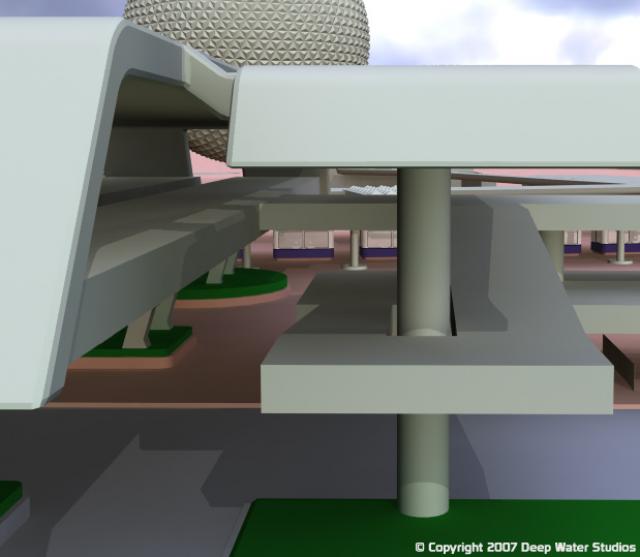

EPCOT Center Monorail Station test render 07

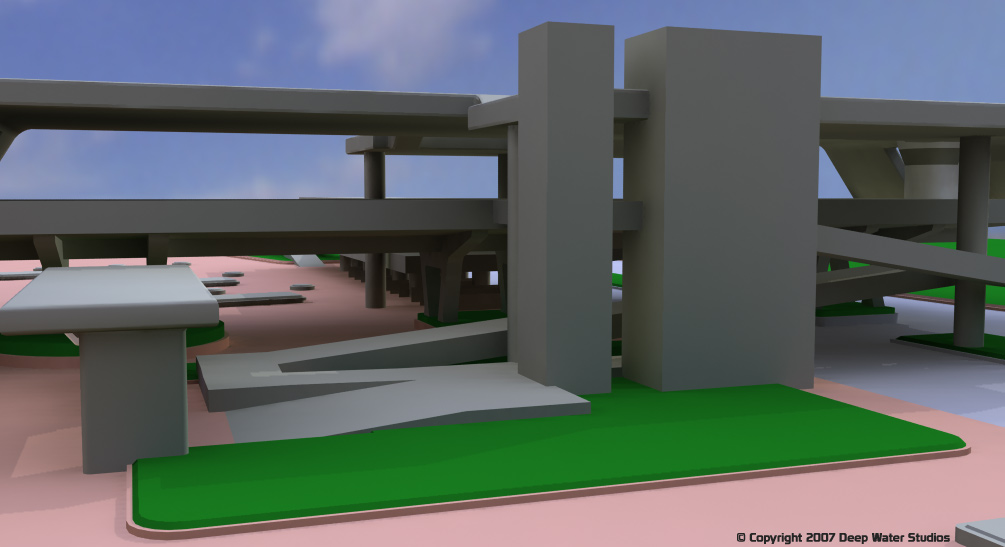

EPCOT Center Monorail Station test render 08

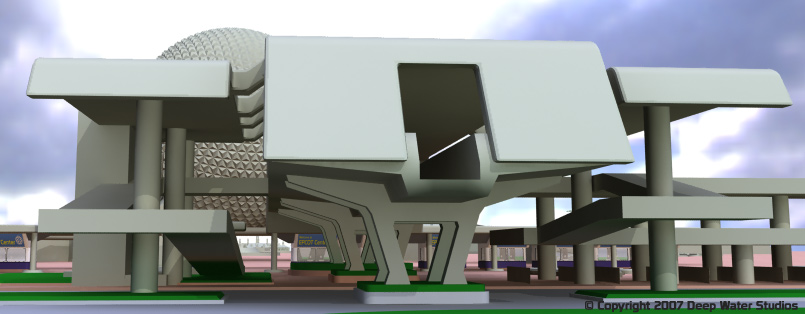

EPCOT Center Monorail Station test render 09

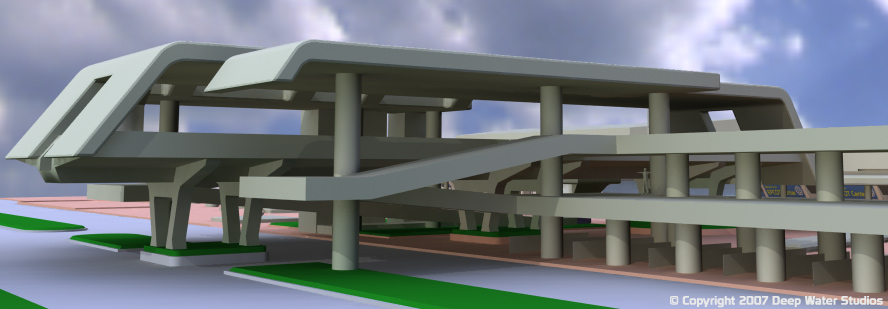

EPCOT Center Monorail Station test render 10
Okay, that’s it for now. My next part of the model will be to build a Mark IV monorail for the station. Of course if anyone finds problems with the station itself, I’ll be making those corrections. I’ll add the details to the station once I’m sure of its accuracy. There’s nothing worse than having to go back and correct a highly detailed model. 😥
Good morning was looking around for the Epcot monorail station and found your site. Were you able to get these completed? I’m with The Villages Model Railroad Club (http://www.thevillagesmodeltrainclub.com/) and we are doing a G Scale Disney layout for what we call Camp Villages. This is a 3 day show that we do for free to the public (grand parents with their grand children). Well needless to say I have been working on a Mark Vi Monorail that I have 3D printed and working on the electronics to have it run a loop and stop at a station. So now I need an actual station and wanted to see if you had this model or a portion of it available to 3D print. Thanks in advance for any information.
